Product Information

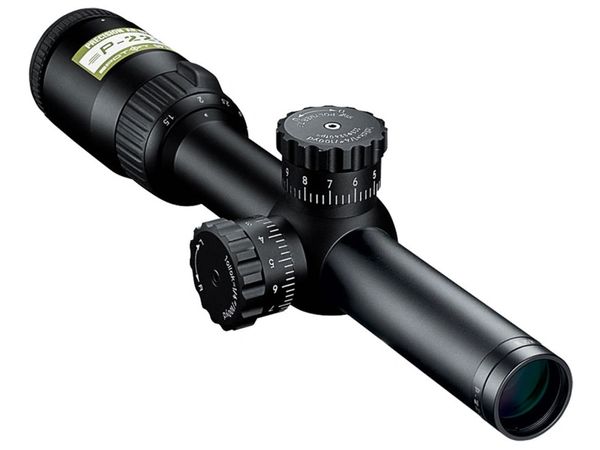

The P-223 Rifle scope is the perfect addition to any AR-15 and provides perfect balance of field of view for close range engagements and crystal clear lenses with the BDC reticle for long range precision. With 98% light transmission and fully multi-coated optics, you can easily engage targets longer than the completion in low light situations. The rugged design of the P223 was built to take on any abuse that comes along and then some. One outstanding set of features is the tactical Rapid Action Turrets which allow you to make positive, quick and accurate 1/4 MOA adjustments in the field or at the range. The P223 is covered by Nikon's limited lifetime warranty.

Technical Information

Tube Diameter: 1"
Adjustment Click Value: 1/4 MOA
Adjustment Type: Click
Exposed Turrets: Yes
Finger Adjustable Turrets: Yes
Turrets Resettable to Zero: N/A
Zero Stop: No
Turret Height: High
Fast Focus Eyepiece: Yes
Lens Coating: Fully Multi-coated
Warranty: Limited Lifetime
Rings Included: No
Sunshade Included: No
Sunshade Length: N/A
Lens Covers Included: No
Power Variability: Variable
Min power: 1.5x
Max power: 4.5x
Reticle Construction: Wire
Reticle: BDC-600
Illuminated Reticle: No
Battery Type: N/A
Holdover reticle: Yes
Reticle Focal Plane Location: 2nd
Parallax Adjustment: Fixed
Finish: Matte
Water/Fogproof: Yes
Shockproof: Yes
Objective Bell Diameter: 25.4mm
Ocular Bell Diameter: 41mm
Eye Relief: 4"
Max Internal Adjustment:

• Windage: 65 MOA
• Elevation: 65 MOA

Exit Pupil Diameter: 4.2mm
Weight: 13.8 oz.

Field of View at 100 Yards:
       43.6' @ 1.5x

10.9' @ 4.5x

Dimensions, in inches unless otherwise stated:
A: 10.35
B: 6.87
C: 3.46
D: 2.16
E: 3.29

F: N/A
G: 1.0
H: 1.6
