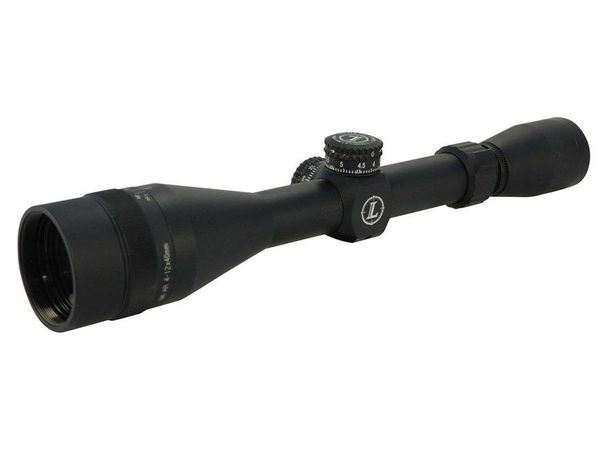

Leupold Tactical Mark AR MOD 1 4-12x40mm P5 Matte Mil Dot Rifle Scope - 115392

$487.00

Product Information

The Leupold Mark AR MOD-1 rifle scope is a precision tool that will help shooters and hunters squeeze every millimeter of accuracy out of their AR style rifle. The MOD-1 Mark AR features the tactical P5 elevation turret with 1/10 Mil adjustments and is calibrated for .223/5.56 55 grain projectiles at a velocity of 3100 fps. The rugged one inch main tube is purged with a proprietary Argon/Krypton blend for superior protection against the elements. The Multicoat4 lens coating reduces glare from lenses improving image clarity by funneling more available light to the shooters eye. With the Multicoat4 system hunters and shooters will be able to make the most of fading light.

Technical Information

Tube Diameter: 1"
Adjustment Click Value: 1/10 Mil
Adjustment Type: Click
Exposed Turrets: Yes
Finger Adjustable Turrets: Yes
Turrets Resettable to Zero: Yes
Zero Stop: No
Turret Height: Medium
Fast Focus Eyepiece: Locking
Lens Coating: Fully multi-coated - Multicoat4
Warranty: Full Lifetime
Rings Included: No
Sunshade Included: No
Sunshade Length: N/A
Lens Covers Included: No
Power Variability: Variable
Min power: 4x
Max power: 12x
Reticle Construction: Wire
Holdover reticle: Yes
Reticle Focal Plane Location: 2nd
Parallax Adjustment: Adjustable Objective
Finish: Matte
Water/Fogproof: Yes
Shockproof: Yes
Objective Bell Diameter: 50.80mm
Ocular Bell Diameter: 40.64mm
Eye Relief: 4.9-3.7"
Exit Pupil Diameter: 10.0-3.3mm
Weight: 14.9 oz.
Max Internal Adjustment:

Windage: 67 MOA

Elevation: 67 MOA

Field of View at 100 Yards:

20.4' @ 4x

9.7' @ 12x

Dimensions, in inches unless otherwise stated :
A: 12.4
B: 4.7
C: 1.6
D: 2.0
E: 3.2
F: 3.9
G: 2.0
H: 1.6
