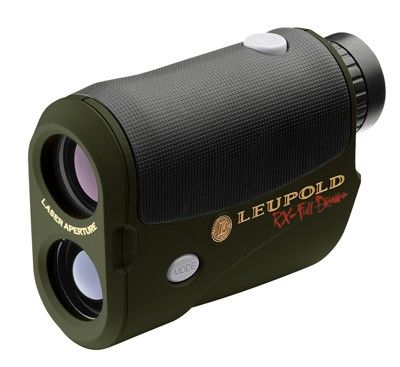

Leupold RX FullDraw Rangefinder 800 Max Yds Dark Green/Blk #115268
The 5x23 RX-Fulldraw Laser Rangefinder from Leupold combines a functional fully multicoated monocular with a Class 1 eye-safe IR laser to create a waterproof optic designed specifically for bow hunters. It uses the DNA engine to precisely range out to 800 yards in under 1 second. Its TBR system displays an adjusted range based on distance, shot angle, and the unique ballistics of the bow and arrow. Trophy Scale provides an approximate height and width of a target so you can judge whether or not to take the shot.
The quick-set menu provides quick and easy one-handed access to all FullDraw features and options. Select one of three reticle patterns that fit your preferences or the situation. A spot mode lets you range to a stationary target, and the continuous-scan mode allows you to track moving targets. Choose to have distances displayed in yards or meters. A battery status indicator continuously shows the available power, while an auto power-off feature conserves it.
- Optical Performance
-
- Roof prism
- 5x magnification
- 23mm objective lens
- Fully multicoated optics
- 14mm eye relief
- 3.6mm exit pupil
- 6° angular field of view
- 325' linear field of view at 1000 yd
- Technologies
-
- Digitally eNhanced Accuracy (DNA) engine delivers measurement resolution to 1/10th yard in under 1 second
- True Ballistic Range (TBR) displays an adjusted range based on distance, shot angle and the unique ballistics of a bow and arrow. Readouts available in MOA, Hold over/under, MilRads and adjusted distance for the ballistic arc
- Trophy Scale provides approximate width and height of targets based on the user's defined parameters
- Quick-set menu provides quick and easy one-handed access to all FullDraw features and options
- Use and Handling
-
- Spot and continuous-scan modes
- Measurements in yards or meters
- Three selectable reticle patterns
- Accurate to ±0.5 yard to 125 yards
- 6 yard minimum range
- Auto power-off after 5 seconds, or 45 seconds with Trophy Scale enabled
- Battery power status indicator
- Construction
-
- Waterproof
- Clicking fast-focus wheel
- Top grip rubberized armor
- Fold-down rubber eyecups
- LCD display
